Description

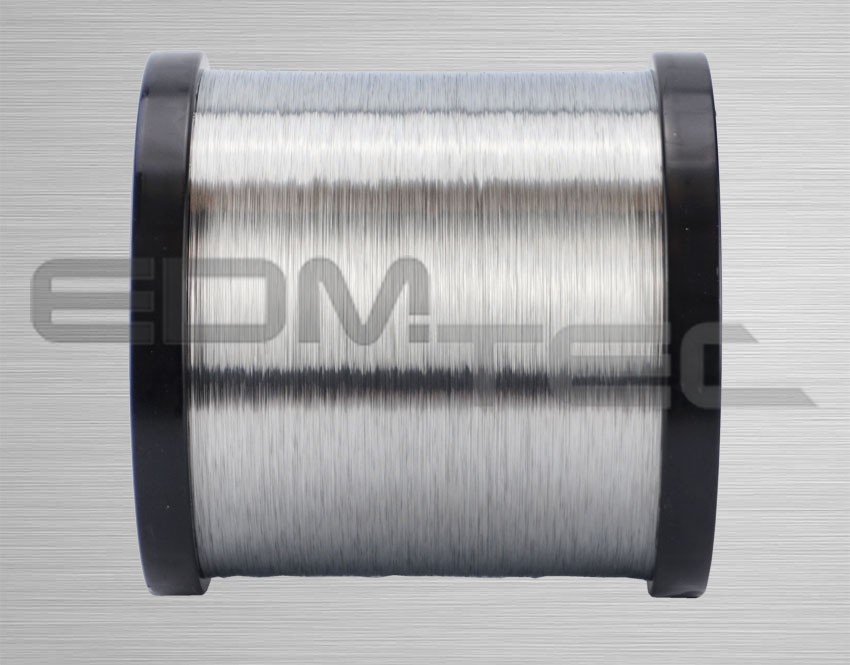

Zinc-plated brass wire electrodes Daco-Cut A with 500 or 900 N/mm² zinc-plated wire electrodes
Zinc-coated brass wire electrodes consist of a brass wire core, are coated with zinc and are additionally subjected to special surface treatments. The relatively thin zinc coating evaporates at a lower energy level than the brass components of the electrode. This significantly improves the flushing of the removed particles during the cutting process.
Core material: CuZn37
Cover material: Zn
Our zinc-coated brass wire electrodes with 500 or 900 N/mm² are manufactured according to the highest quality standard in Germany.
These wire electrodes are especially suitable for all EDM machines with automatic threading.
The 900 N/mm² version is particularly suitable for use on AGIE wire EDM machines, while the 500 N/mm² version is particularly suitable for strong conics and is used on some Charmilles wire EDM machines to achieve the highest surface finishes.
The available diameters, tensile strengths and bobbin sizes are shown in the following table.
MS Wire zinc coated Daco-Cut A 500/900 | ||||
Durchmesser Diameter |
Zugfestigkeit Tensile Strength |
Spulentyp Spool type |
Gewicht/Spule Weight/Spool |
Spulen/Karton Spools/Package |
( mm ) | ( N/mm² ) | ( kg ) | ||
0,10 | 900 N | K-125 | 3,5 | 4 |
0,15 | 900 N | K-125 | 3,5 | 4 |
0,15 | 900 N | K-160 | 8 | 2 |
0,20 | 900 N | K-125 | 3,5 | 4 |
0,20 | 900 N | K-160 | 8 | 2 |
0,20 | 900 N | K-200 | 16 | 1 |
0,25 | 500 N | K-160 | 8 | 2 |
0,25 | 500 N | K-200 | 16 | 1 |
0,25 | 900 N | K-125 | 3,5 | 4 |
0,25 | 900 N | K-160 | 8 | 2 |
0,25 | 900 N | K-200 | 16 | 1 |
0,25 | 900 N | K-250 | 25 | 1 |
0,30 | 900 N | K-160 | 8 | 2 |
0,30 | 900 N | K-200 | 16 | 1 |
